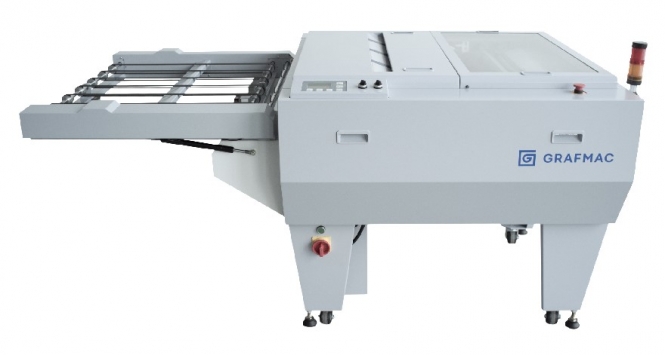

PB-SH Plate Conveyor (attached)
Hanging plate conveyor perfectly suited for GRAFMAC Plate Processors
The connection between plate processor and CTP with space saving fold up design.
? Durable rubber belt for long term usage.
? Anti-Slip deisgn, no maintanence needed.
? Space saving fold-up design.
? Plate alignment function.
? Can only be installed on GRAFMAC plate processors.
? Durable rubber belt for long term usage.
? Anti-Slip deisgn, no maintanence needed.
? Space saving fold-up design.
? Plate alignment function.
? Can only be installed on GRAFMAC plate processors.
| Model | W-PB-32SH | W-PB-45SH | W-PB-48SH | W-PB-53SH | W-PB-64SH | |
| MAX. Width | 850 mm | 1100 mm | 1280 mm | 1380 mm | 1780 mm | |
| MAX. Length | 850 mm | 1200 mm | ||||
| Conveying Speed | 170 mm/s | |||||
| Weight | 35 kg | 40 kg | 45 kg | 55 kg | 65 kg | |
| Dimension | Width | 1120 mm | 1390 mm | 1550 mm | 1650 mm | 2053 mm |
| Depth | 890 mm | 1250 mm | 1200 mm | |||
| Height | 420 mm | |||||
| Power Spec., | Single phase、220~240V、50/60Hz、5A | |||||
