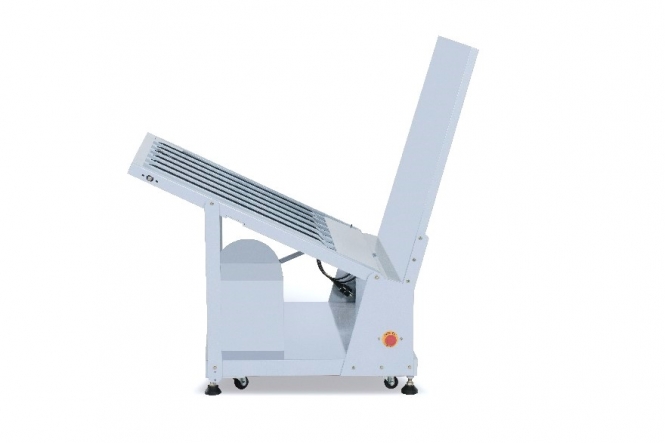

SBZ Plate Stacker
Automatic stacker that suits GRAFMAC plate processor perfectly.
Auto plate stacking function preventing scratches on the plate, reducing the need for human labor.
Realizing continous and highly efficient plate making process.
? Durable rubber belt for long term usage.
? Anti-slip off design, no maintainance.
? Two-section plate transferring drive to satisfy continous plate processing needs.
Realizing continous and highly efficient plate making process.
? Durable rubber belt for long term usage.
? Anti-slip off design, no maintainance.
? Two-section plate transferring drive to satisfy continous plate processing needs.
| Model | W-SBZ-32 | W-SBZ-45 | W-SBZ-48 | W-SBZ-58 | W-SBZ-64 | ||
| MAX. Length | 1030 / 800 mm | 900 mm | 1100 mm | 1620 mm | 1240 mm | ||
| MAX.Width | 800 / 1030mm | 1100 mm | 1200 mm | 1260 mm | 1630 mm | ||
| Stacking Capacity | 50 pcs | ||||||
| Staking Speed | 0 ~ 170 mm/s | ||||||
| Weight | 100 kg | 110 kg | 120 kg | 150 kg | 165 kg | ||
| Diminsion | Width | 1080 mm | 1250 mm | 1280 mm | 1260 mm | 1740 mm | |
| Depth | 1660 mm | 1220 mm | 1660 mm | 2450 mm | 1860 mm | ||
| Height | 1370 mm | 1260 mm | 1370 mm | 1900 mm | 1640 mm | ||
| Power Spec. | Single phase、220~240 V、50/60Hz、5A | ||||||
